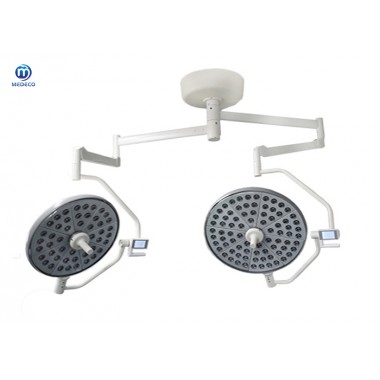

ME LED Operating lamp Led 700/500 with camera system(ECTD010)
1)Double LED lamps
2)Triple Ceiling Arms(Chinese arm)
3)Triple Balance Arms(Chinese round arm)
4)Double Lamp head
5)SONY HD Camera System
6)Medical Monitor (Full HD medical level, 22",SDI Interface)
| MEDECO HD camera system Parameter | |
| Image Sensor | 1/2.8" CMOS |
| HD Digital Pixel(Resolution) | Imported Sony HD>2 million pixels(1920x1080) |
| Aspect Ratio | 16:9 |
| Lens | 10x Optical zoom&12x Digital zoom F=1.8-2.5(f=6.3~63mm) |
| Minimum Luminance | Colour 2.0 Lux,Black white 0.1 Lux |
| White Balance | Indoor/fluorescent light/halogen light/LED light model, signal can be adjust |
| Minimum Object Distance | 800 mm |
| Signal/Noise Ratio |
|
| Output connection | 1.HD SDI 2.HDMI |
| Medical Monitor | Full HD medical level, 22",SDI Interface |
FEATURE
1.Germany LED light sources pass through high-performance OSRAM lens.
2.Optional balance arm four model:Ondal square arm;Ondal round arm;Luxury square arm;Economy round arm.
3.The Color temperature is adjustable from 3500k to 5000k by four levels,while maintaining the color rendering index of Ra 95.
4.The minimal life expectancy of each LED is 40,000 hours.
5.Within the whole adjusting ,the illumination intensity of ME LED700 can achieve up to 160,000 lux.
6.Options:2~3hours backup battery ,wall-mode arm,Mobile-model base,Remote control,Touch-Screen,HD Camera system.
MEDECO LED OPERARING LIGHT PARAMETER:
| Technical specifications for lights | LED700 | LED500 |
| Illumination(Lux) | 40,000~160,000 (8 levels) | 40,000~120,000 (8 levels) |
| Focusable light-field size (mm) | 150~300 | 150~300 |
| Colour temperature | 3500 4000 4500 5000 | 3500 4000 4500 5000 |
| Light Depth L1+L2(mm) | >1000 | >1000 |
| Colour Index Ra | >95 | >95 |
| Power Supply | 110~240V 50/60Hz | 110~240V 50/60Hz |
| Effective bulb service life | >50,000h | >50,000h |
| Diameter of lamp housing | 650mm | 550mm |
| Power (W) | 120 | 84 |
| Installation height (Ceiling type) | 280-320 cm | 280-320 cm |
| Endoscopy model | Available | Abailable |
Product Name: MEDECO ME Series LED Operating Light
Brand: MEDECO
Model Number: ME
Place of Origin: China
Certification: CE ISO
Minimum Order Quantity: 1
Delivery Time: 1 month
Payment Terms: T/T, L/C, Westunion
Supply Ability: 100pcs/month
Adjustable Brightness: Yes
Installation Height: 2800-3200mm
Adjustable Color Rendering Index: Yes
Power: 110V-240V/50/60Hz
Color Control: Adjustable/Fixed
This OR Light is a surgical light source with adjustable brightness and color rendering index. It has a power supply of 110V-240V/50/60Hz and can be installed at a height of 2800-3200mm. With color control that can be adjusted or fixed, it is an ideal choice for any operating room.
