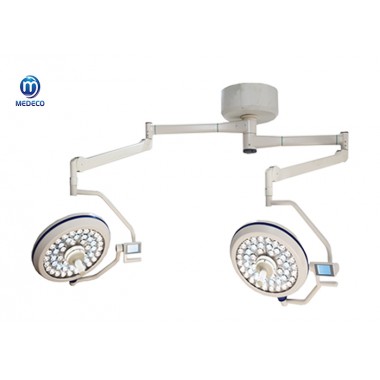

II Series LED Operating Lamp 500/500

  • FOB Price:Get Latest Price >
  • Min.Order:1 Piece(s)
  • Production Capacity:5000pieces/year
  • Payment Terms:L/C , T/T
  • Favorite
MERMAID (MEDICAL)INDUSTRY LIMITED

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

6/10

Product Information

  • Model:II Series LED Operating Lamp 500/500
  • Certification:CE
  • Warranty:1 year
  • Central illuminance at 1m working distance:40,000~18,0000 lux
  • Focusable light-field size at  1 m distance:120~300mm
  • Colour temperature:3500~5000K
  • Depth of Focus:>700mm
  • Diameter of lamp housing:700mm
  • Power consumption of light heads(W):60
  • Installation height (Ceiling type):280-320 cm

Description

  • Model NO.: II SERIES LED OPERATING LAMP II SERIES LED 500/500

    • FEATURE

    Germany imported Osram LED medical light source is adopted
    II LED Touch pad control system is developed for adjustment control of power switch, brightness switch, illumination level, color temperature, color rendering index, to meet medical personnel requirement of variant operation.
    Cold infrared-free light
    In comparison to conventional halogen and gas discharge lamps, the "cold" II LED light allowing for fatigue-free operating and prevents tissue from drying out in the operation field at the head area of the surgeon.
    Shadow-free Illumination
    The relation between light body and light field diameter guarantees an optimum illumination of the OT field in terms of area and depth.
    High Luminance with optimum color rendering
    Designed to provide a light output with a color rendering index and color temperature which is very close to natural daylight.This helps the surgeon to distinguish between pathological and healthy tissue.
    Optimum design for clean air ceilings (Laminar Air Flow)
    The perfect design reduce the airflow surface beneath the ventilated ceiling, Flow- optimized light head and reduced surface temperature minimise turbulence in laminar air flow.
    Long-lasting light sources, environmentally friendly
    With a life cycle of at least 50,000 operational hours, an LED provides illumination many times longer than conventional lighting.In addition,each LED can be replaced individually and on site.
    The Germany ondal and Chinese arm system option
    As a flexible lighting solution, II LED light can be individually combined with different support arm solutions,enabling it to be used as needed in different operating theatres.
    STANDARD MODEL CONFIGURATIONS:
    II LED700/700(700mm+700mm Lamp Head)
    II LED700/500(700mm+550mm Lamp Head)
    II LED500/500(700mm+550mm Lamp Head)
    II LED700 (700mm Lamp Head)
    II LED500 (550mm Lamp Head)

    TECHNICAL SPECIFICATIONS FOR LED LIGHT
Technical specifications for lightsII LED700II LED500
Central illuminance at 1m working distance40,000~18,0000 lux40,000~160,000 lux
Focusable light-field size at  1 m distance120~300mm120~300mm
Colour temperature3500~5000K3500~5000K
Depth of Focus>700mm>700mm
Colour Index Ra9595
Power Supply110~240V  50/60Hz110~240V  50/60Hz
Effective bulb service life>50,000h>50,000h
Diameter of lamp housing700mm550mm
Power consumption of light heads(W)6048
Installation height (Ceiling type)280-320 cm280-320 cm
