medical equipment tower crane arm medical pendent Bridge (Model ECOH

  • FOB Price:Get Latest Price >
  • Min.Order:1 Piece(s)
  • Production Capacity:5000pcs/year
  • Payment Terms:L/C , T/T
  • Favorite
MERMAID (MEDICAL)INDUSTRY LIMITED

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

8/10

Product Information

  • Model:ECOHO series
  • Certification:CE
  • Packaging Details:standard exporting packaging box
  • Brand Name:Mermaid
  • Trademark:Mermaid
  • Place of Origin:China
  • Warranty:1 year
  • Rotary Arm Length:Single:1000mm;Double:800+800mm
  • Rotary Radius:>650mm
  • Loading Capability:Single Arm >250kg;Double Arm>220kg
  • Shelf Loading:>60kg
  • Extension Arm:Quantity Is Optional
  • Electrical Lift Length:400-600mm
  • Level Degrees Rotation:<350 O

Description

Integrated platform for surgical and monitoring instruments
  medical gas supply,power supply,and information terminals in one set

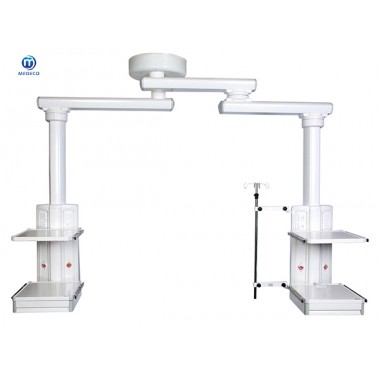

  Medical Pendent bridge (Model ECOH058) free movement,convenient adjustment
   suitable for needs of surgical instruments and equipments locations in ICU


Detailed Technical Parameter
1. apply in operating room ,endoscope room ,anesthesia room and hospital wards so on
2. is available in single and double arm configurations .Each joint has a ratation range up to ≤350 degree.
3. Ceiling-mounted installation
4. Pendant column can be custom designed to accommodate a large variety of medical gas outlets and electrical device.
5. One arm, can rotation, rotation angle≤350 degree.
6. high-strength aluminium alloy,warewell reduce your cost
7. Pendant color :blue ,red and so on
8.Medical gas outlet optional German / British /America/Japanese/ French /Chinese standards.
9. can horizontal rotation ,cannot lift
Standard Configuration
ItemParameterMark
pendant materialused high-strength aluminum alloy ,modular design ,surface electrostatic powder painting,prevent corrosive ,easy to cleanlow maintenance,never rust
brake waymechanical friction brake,the pneumatic brake is optional,to make sure without drifting and easy to stop,insure safe
rotary arm lengthsingle arm 1000mmdouble arm 800+800mmthe arm length is optional
Rotary radius≥650mm
loading capabilitysingle arm EX- 50≥180kg
single arm EX-60≥250kg
double arm EX-50≥150kg
double arm EX-60≥220kg

shelf loading≥60kg
equipment shelf2pcs (with prevention of collision system)quantity and height is optional
medical gas outsO2*1,Air*1,Vac*1 (for surgical)for endoscopyfor anaesthesia
O2*1,Air*1,Vac*1,CO2*1O2*1,Air*1,Vac*1,CO2*1,AGSS*1
power socketmultifunctional 3pin 8pcs (220V 10 A,Legrand)style and quantity is optional
net socketRJ45 1pcsquantity is optional
extension arm1pcsquantity is optional
basket  (S/S)1pcs
drawer1pcsautomatic suction type
column length800mmlength is optional
box pendant head length650mmlength is optional
level degrees rotation≤350 º
pendant body  rotation≤350 º
