MERMAID (MEDICAL)INDUSTRY LIMITED

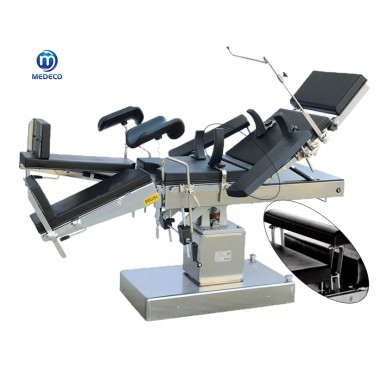

Multi-Purpose Manual Operating Table Model 3002 ECOH08 medical table

Length:2100mm
Width:500mm
Max Height:950mm
Min Height:750mm
Adjust:≥200mm

This table is suitable for surgical procedures of the head,neck, thorax and abdomen,perineum and extremities as well as for gynecology, otorhino-laryngological and orthopaedics ,operation.The table's elevation,lowering ,reversed trendelienburg, trendelenburg, lateral tilt can be all automatically controlled. Leg section can be rotated, opeded, disassembled and adjusted easily. It is most suitable for the urological operation,The table top made of high strength glass, can move backwards and forwards. X-Ray examination can be carried out on it, It can be raised or lowered hydraulically by means of an oil pump. Various positions can be controlled from both sides. Chassis inside an outside covers are stainless steel.

SPECIFICATION

Table height:750mm~950mm
Length and width: 2100mmx500mm
Reversed Trendelenburg: 25º
Trendelenburg: 20º
Left inclining angle: 18º
Right inclining angel: 18º
Upward folding angle of back rest: 75º
Downward folding angle of back rest: 10º
Upward folding angle of head rest: 45º (Dismountable)
Downward folding angle of head rest: 50º
Downward folding angle of leg rest: 90º (Dismountable)
Kidney bridge range: 80mm


Standard Accessories

1. Pads
2. Leg bracket
3. Arm rest
4. shoulder rest
5. Body support
6. Anesthetic Screen
7. Body restraint strap
