MERMAID (MEDICAL)INDUSTRY LIMITED

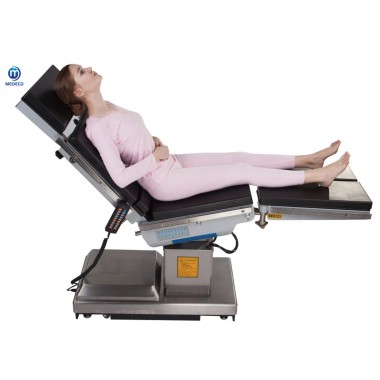

Electric Hydraulic Operating Table Medical Equipment Surgical Table

Description of Electric Hydraulic Operating Table:

Electric hydraulic operating table ECOH001 applied a combination of modern technology and humanization design concept, electro-mechanical drive technology.

This product combine many functions:

1. Low lift and the distance of the mesa is 450mm. There is ample space for use with c-arm.
2. Vertical panning up to 530mm,do not need to reverse out patient or adjust the table in advance to General c-arm pivot to the patient and image review.
3.4-self-compensation-type floor the brakes locked, all mechanically operated emergency brake release systems.(Only Model JHDS-99E-1 has this function).
4. It has emergency power.It can be used when the electric power is off.
5. In set waist bridge.
6. The mesa of the table can male V style body position 100°,Anti-V 220°.
7. Using memory foam, natural plastic in accordance with the patient's body temperature and body size, removable.(Optional Components).
8. Backup operating system.

Main Usage: Electric operating table can be used as doctor examination talbe or operating room table for hosptial or clinical.

Structure :Electric Hydraulic Operating Table consists of two parts: mechanical and electro-hydraulic control system. Depending on manual operation, the product can meet the requirement of posture in clinical operation.

1 The Electric operating table uses electro-hydraulic systems to control all the movements: height adjustment, trendelenburg and reversed trendelenburg, lateral tilt, back movements, forward and backward movement , kidney bridge elevating ,V style and Anti-V, brake. Head section, leg section and vertical rotation of tabletop are operated by manual operation.

2 The table comprises of five sections: head section, back section, Waist Section(When optional), sitting section and leg section.
The forward and backward movement of tabletop can make C-arm perspective quick and easy.

Specification:

Dimension of table top:
Overall Length.......................................2100mm
Width.....................................................500mm

Dimension of section:
Head Section...................................…250×500mm
Back Section.......................................465×500mm
Kidney Bridge.....................................75×500mm
Seat section........................................630×500mm
Leg Section....................................…600×240mm
Table top of from floor
Min Height......................................….700mm
Max Height.........................................1150mm
Adjust.............................................….450mm

Q1: What is the brand name of this medical table?

A1: The brand name of this medical table is MEDECO.

Q2: Where is this medical table manufactured?

A2: This medical table is manufactured in China.

Q3: Does this medical table come with any certification?

A3: Yes, this medical table comes with CE and ISO certification.
