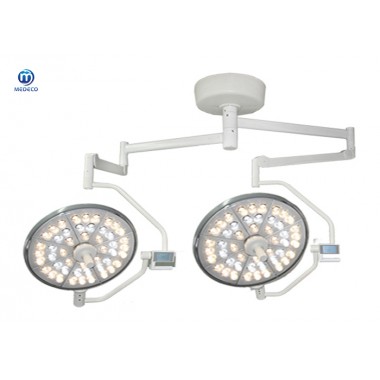

ME series LED Operation lamp

  • FOB Price:Get Latest Price >
  • Min.Order:1 Piece(s)
  • Production Capacity:5000
  • Payment Terms:L/C , T/T
  • Favorite
MERMAID (MEDICAL)INDUSTRY LIMITED

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

6/10

Product Information

  • Transport Package:standard export packaging
  • Specification:CE
  • Trademark:Mermaid medeco
  • Country of Origin:Shanghai China
  • terms payment :T/T; L/C
  • Illumination(Lux):40, 000~160, 000 Lux
  • Focusable Light-Field Size (mm):150~300mm
  • Color Temperature:3500K 4000K 4500K 5000K
  • Light Depth L1+L2(mm):> 1000mm
  • Color Index Ra:>95
  • Effective of Light Life:>50, 000 Hours
  • Installation Height(Ceiling Type):280-320cm

Description

MEDECO  HD camera system Parameter
Image Sensor1/2.8" CMOS
HD Digital Pixel(Resolution)Imported Sony HD>2 million pixels(1920x1080)
Aspect Ratio16:9
Lens10x Optical zoom&12x Digital zoom
 F=1.8-2.5(f=6.3~63mm)
Minimum LuminanceColour 2.0 Lux,Black white 0.1 Lux
White BalanceIndoor/fluorescent light/halogen light/LED light
 model, signal can be adjust
Minimum Object Distance800 mm
Signal/Noise Ratio
  • 50 dB
Output connection 1.HD SDI 2.HDMI
Medical MonitorFull HD medical level, 22",SDI Interface



FEATURE

1.Germany LED light sources pass through high-performance OSRAM lens.
2.Optional balance arm four model:Ondal square arm;Ondal round arm;Luxury square arm;Economy round arm.

3.The Color temperature is adjustable from 3500k to 5000k by four levels,while maintaining the color rendering index of Ra 95.
4.The minimal life expectancy of each LED is 40,000 hours.
5.Within the whole adjusting ,the illumination intensity of ME LED700 can achieve up to 160,000 lux.

6.Options:2~3hours backup battery ,wall-mode arm,Mobile-model base,Remote control,Touch-Screen,HD Camera system.


MEDECO LED OPERARING LIGHT PARAMETER:

Technical specifications for lights

LED700LED500
Illumination(Lux)40,000~160,000 (8 levels)40,000~120,000 (8 levels)
Focusable light-field size (mm)150~300150~300
Colour temperature3500 4000 4500 50003500 4000 4500 5000
Light Depth L1+L2(mm)>1000>1000
Colour Index Ra>95>95
Power Supply110~240V  50/60Hz110~240V  50/60Hz
Effective bulb service life >50,000h>50,000h
Diameter of lamp housing 650mm550mm
Power (W)12084
Installation height (Ceiling type)280-320 cm280-320 cm
Endoscopy model
