MERMAID (MEDICAL)INDUSTRY LIMITED

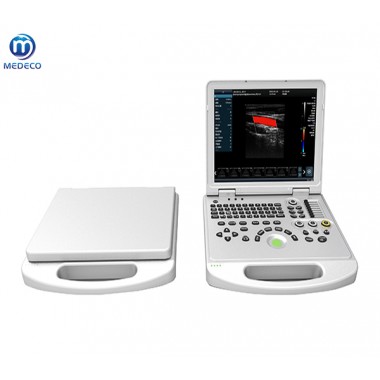

1. Item:Color Ultrasonic Diagnostic Apparatus

1.1 Type:Laptop model

2.Main clinical Application:

2.1 Main Application: abdomen, volume, ratio, obstetrics and Gynecology, small organs, carotid, Urology, orthopedics, peripheral blood vessels, heart and so on.

3.Summary of the main specifications

3.1 Ultrasonic host operating system: Windows 8 operating system

3.2 Spectrum pulse Doppler

3.3 Direction energy Doppler

3.4 Real time three synchronization

3.5 Space composite imaging

3.6 Tissue harmonic imaging

3.7 2B / 4B imaging mode

3.8 Language: Chinese/English/Russian/Spanish/French

3.9 Monitor: 15 inches, high definition LED

3.10 Display 0-180 degree angle adjustable

3.11 Physical clipboard: save the image on the left side of the screen, which can be directly saved or deleted.

3.12 The system has the function of on-the-spot upgrade

3.13 Presupposition: for different inspection of the viscera, preset the inspection conditions for the best image, reduce the adjustment of the operation, and the commonly used external adjustment and combination regulation.

3.14 Support real-time 3D imaging function, 3D/4D/5D (HD LIVE)

3.15 Signal probe interface

3.16 Trapezoidal imaging Function

4.Probes:

Convex probe: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H4.0MHz/H5.0MHz, (Depth: 20-317MM)

Linear probe: 6.0MHz/7.5MHz/8.5MHz/10.0MHz/H10.0MHz, (Depth:20-110MM)

Trans-vaginal probe: 4.5MHz/6.0MHz/7.0MHz/9.0MHz/H8.0MHz, (Depth:30-111MM)

Phased array probe (adult): 2.0MHz/2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz/H3.0MHz/H4.0MHz，（depth100-244MM）

Phased array probe (pediatric) 2.0MHz/3.0MHz/4.0MHz/5.0MHz/7.0MHz/ H5.0MHz/H6.0MHz/H7.0MHz，(depth: 100-244MM）

Volume probe: 2.0MHz/3.0MHz/4.5MHz/6.0MHz/H5.0MHz, (Depth:30-237MM)

Micro-convex probe (R11): 4.5MHz/6.0MHz/7.0MHz/9.0MHz/H8.0MHz, (Depth:30-111MM)

Micro-convex probe (R20): 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H4.0MHz/H5.0MHz, (Depth:30-23.7MM)

The above probes have harmonic frequencies

Each probe has a selection of specialist and organ modes for quick access for diagnostic

5. Two-dimensional imaging mode:

5.1 Gain: 0-100, step 1 visible adjustable

5.2 TGC: 8 segment adjustable

5.3 Dynamic range: 20-280dB 20 level visual adjustable

5.4 Pseudo color: 12, visible and adjustable

5.5 Sound power: 5% to 100%, step 5%, visible and adjustable

5.6 Body mark ≥6 kinds

5.7 Maximum focus number: ≥6 ,adjustable

5.8 Gray scale: 0-7 level visible visible and adjustable

5.9 Filtering: ≥5 kinds

5.10 Scanning range, 50%-100%

5.11 Frame correlation, 0-4 level, visible and adjustable

5.12 The screen shows 14 forms of real time display of power, probe frequency, dynamic range, pseudo color, grayscale and so on.

6.Color imaging mode:

6.1 Colour deflection: workable

6.2 Color frame correlation 12 levels, visible and adjustable

6.3 Color map: 7, visible and adjustable

6.4 Color reversal: adjustable

6.5 B/C split screen synchronous display function: workable

6.6 Color baseline: 7, visible and adjustable

6.7 Color line density: adjustable

7 Spectrum Doppler mode:

7.1 Sampling volume angle correction: -80 degree to 80 degree adjustable

7.2 Sampling volume: 0.5mm-20mm visible and adjustable

7.3 Frequency: ≥5, visible and adjustable

7.4 Baseline: 8 steps adjustable

7. 5 Smooth: 8 steps adjustable

7.6 Display layout: ≥4 kinds, visible and adjustable

7.7 Pseudo color: ≥ 7, visible and adjustable

7.8 Speed scale: 3-2288cm/s

7.9 Spectrum envelope function: real time automatic spectrum envelope, manual spectrum envelope, and so on. System automatic analysis and display: PSV, EDV, RI, PI, S/D, ACC, HR and other kinds of data

8 3D Mode

8.1 Fast angle: support 0°, 90°, 180°, 270° rotation of the 3D window image;

8.2 Display model: one image, dual images, quad images

8.3 Reconstruction modes: RealSkin, surface, Max, Min, XRax;

8.4 Pseudo Color: 0-7 Levels Adjustable

8.5 Image magnification: 5 levels

8.6 Contrast: 0%-100%；

8.7 Threshold: 0%-100%

8.8 Smooth: 0-3 Adjustable

8.9 Image Rotation: X/Y/Z Axis；

9 4D Mode

9.1 Fast angle: support 0°, 90°, 180°, 270° rotation of the 3D window image;

9.2 Display model: one image, dual images, quad images

9.3 Reconstruction modes: RealSkin, surface, Max, Min, XRax;

9.4 Pseudo Color: 0-7 Levels Adjustable

9.5 Image magnification: 5 levels

9.6 Contrast: 0%-100%；

9.7 Threshold：0%-100%

9.8 Smooth: 0-3 Adjustable

9.9 Image Rotation: X/Y/Z Axis；

9.10 Line Density: 2 levels adjustable；
