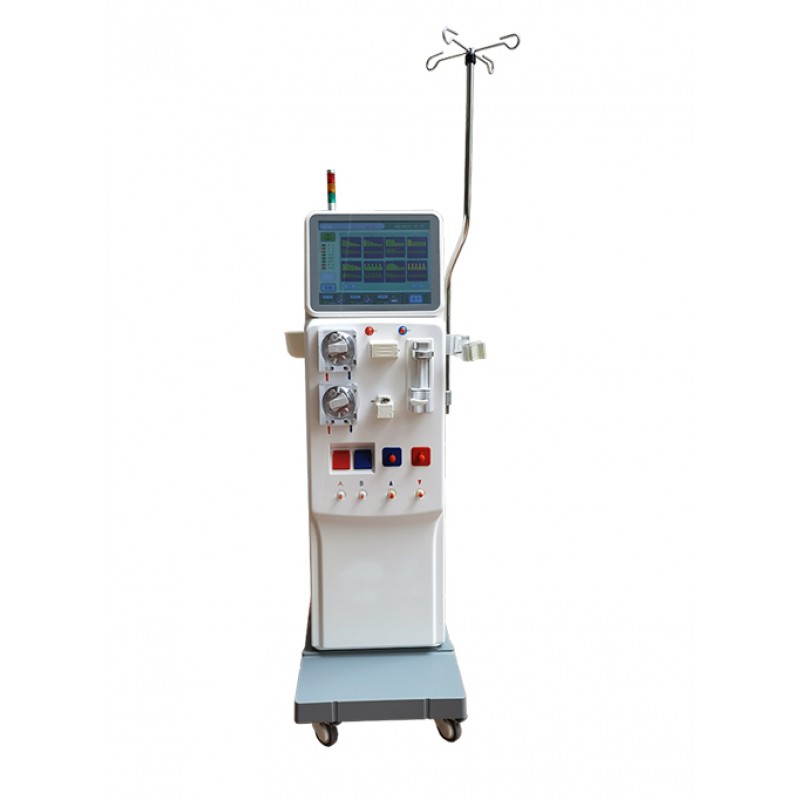

CE Marked Hemodialysis Kidney Dialysis Center Patient Therapy Medical Equipment 6008
Product Descriptions of Hemodialysis Machine 6008:
Intelligent operation system; Easy operation with visual and audio alarms; Multi-purposeservice/maintenance interface; Profiling: sodium concentration and UF curve; Main performance of this device:1. On-line HDF2. Self-checking function;3. Carbonate dialysis;4. Double needle dialysis;5. Liquid level detector;6. Bubble detector;7. Blood leakage detector;8. Temperature and electric conductivity monitoring;9. Arterial pressure, venous pressure and transmembrane pressure monitoring;10. Rolling blood pump;11. Heparin pump;12. Dehydration amount controlled by capacity;13. Automatic disinfection cleaning program;14. Stand-by power of blood pump in case of power failure;15. Information display function of display screen Technical ParameterSize &Weight:Size:380mmx400x1380mm (L*W*H);Net Weight approx.: 88KG;Gross Weight approx.: around 100KG;Package Size approx.: 650×690×1581mm (L x W x H)Power supply:AC220V, 50Hz/60Hz, 10AInput power: 1500WBack-up battery: 30 minutesWorking Condition:Water input pressure: 0.1Mpa~0.6Mpa, 15P.S.I~60P.S.IWater input temperature: 5ºC~30ºCWorking environment temperature: 10ºC~30ºC at relative humidity <=70% UF rate:Flow range: 0ml/h~4000ml/hResolution ratio: 1mlPrecision: ±30ml/hBlood pump & substitution pump:Blood pump flow range: 10ml/min~600ml/min (diameter: 8mm or 6mm)Substitution pump flow range: 10ml/min~300ml/min (diameter 8mm or 6mm)Resolution ratio: 0.1mlPrecision: ±10ml or 10% of readingHeparin pump:Syringe size: 20, 30, 50mlFlow range: 0ml/h~10ml/hResolution ratio: 0.1mlPrecision: ±5% Monitoring system &Alarm setup:Venous pressure: -180mmHg ~ +600mmHg, ±10mmHgArterial pressure: -380mmHg ~ +400mmHg, ±10mmHgTMP: -180mmHg ~ +600mmHg, ±20mmHgDialysate temperature: preset range 34.0ºC~39.0ºCDialysate flow: Less than 800 ml/min (Adjustable)Chengdu Wesley Bioscience Technology Co., LtdSubstitution flow range: 0-28 L/H (on line HDF)Blood leak detection: Photo chromic alarm when erythrocyte specific volume is 0.32±0.02 orblood leak volume is equal or more than 1ml per liter of dialysate.Bubble detection: Ultrasonic, Alarm when a single air bubble volume is more than 200μl at200ml/min blood flowConductivity: Acoustic-optic Disinfection/Sanitize:1. Hot disinfection:Time: 30 minutes; Temperature: about 80ºC, at flow rate 500ml/min;2. Chemical disinfection:Time: 30minutes, Temperature: about 36ºC~50ºC, at flow rate 500ml/min;3. Chemical disinfection with heat:Time: 45minutes, Temperature: about 36ºC~80ºC, at flow rate 50ml/min;4. Rinse:Time: 10minutes, Temperature: about 37ºC, at flow rate 800ml/min;Storage Environment:Storage temperature should be between 5ºC~40ºC, at relative humidity <=80%Function:HDF, on-line BPM, Bi-cart and 2 pcs endotoxin filters
