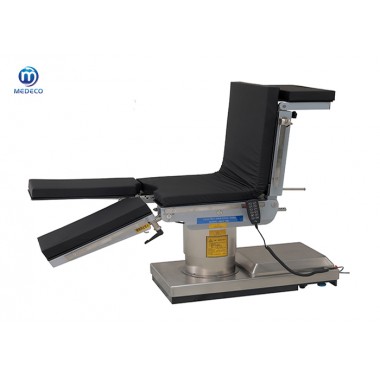

Hospital multi function Electric motor medical Operating Table ECOH003
This Electric Operating Table ECOH003 is developed independently by our company wity innovativ and advanced technologies.
The table is a compehesive one with high-quality and multi-purposes,which takes the leading position in the domestic market.
The table can be used in almost all kinds of operations by means of speical design.
The bedtop can be moved vertically and rotated horizontally. The tableboard is made from high-intensity synthesis panel. X-Ray transmissive, easy adjustment and easy use of C-arm make the table can be more capable for any operation.
The operating table is controlled by Control Circuit, which is easy operation, low noise,reliable performance.
2000L operating table has almost the same functions with 99C, except that ECOH004 can't be moved in vertical direction. Adjustment of sections:
Head Section Raised from the horizontal........≥45°
Head Section lowered from the horizonta.........≥90°
Back Section Raised from the horizontal..........≥75°
Back Section Raised from the horizontal..........≥30°
Leg Section Lowered from the horizontal.........≥90°
Leg section opened.....................….....................≥90°
Back rise(When optional)....................................≥80mm
Horizonal ratation of tabletop............................0~180°
Lifting speed..................................................…..4~16mm/s
safe working load...............................................250kg
Device safety sortI B
Ingress Protection:IPX4
Power:(AC)220V,50Hz
Battery capacity is 14 AH Battery capacity ≥ 2.4AH
Main Usage & Structure
Main Usage: Electric operating table can be operated for clinical use.
Structure :Operating table consists of two parts: mechanical and electro-hydraulic control system.
Depending on manual operation, the product can meet the requirement of posture in clinical operation.
