Dialysis chair-Product description:

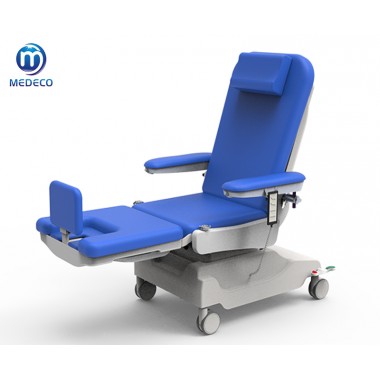

Medical Instrument Dialysis Machine Blood Donation Chair Electric Dialysis Chair ME410
Multi-position adjustment possibilities by 4 DEWALL motors offer patient comfort and reduction in staff work load
Advantages
1. Product philosophy
Design and comfort are the main attributes of the Passion multifunctional chair. That is why the chair will be applied in health care, in social areas and other services. It is suitable for dialysis departments, examination rooms, treatment rooms.
It offers healthy sitting which is why it is ideal for treatments where clients spend more time in one position.
The comfort able loading area and ergonomic armrests especially provide maximum comfort during the treatment.
2.Saving space
Overall chair dimension: L 2090 mm x W 700 mm x H 620~850 mm. Smaller overall chair dimensions to save up to 40% of floor space than a hospital bed and therefore allows better and more functional use of space.
3. Height Adjustment
The lowest 620 mm & the highest 850 mm height adjustment gives added assurance to patients accessing Passion Chair.
4. Multi-Functional Armrest
Multifunctional armrest provide in vertical adjustment from 0°~90°, and horizontal adjustment from 0°~45° to make patient comfort during procedures.
5. Motorized Footrest
The footrest can be adjusted by hand control according to the height of each patient.
Optional Accessories
1.Detachable pillow
2.Adjustable armrests
3.Motorized footrest
4.Reading lamp with flexible arm
5.Swivel castor with central brake
6.ABS covered sub-frame.
7.Both electric and mechanical CPR function
8.Infusion bottle holder (I.V Pole)
9.Side Table
Specification
Model | ME-410series |
Overall Length | 2090 mm |
Seat Width | 600 mm (including armrest 900mm) |
Height Adjustment | 620 ~ 850 mm±100mm |
Backrest adjustment | -12° ~ 80° |
Legrest adjustment | -80° ~ 12° |
Backrest Adjustment | -12°~75° |
Legrest Adjustment | -80°~12° |
Trendelenburg Position | -12° |
Safe maximum load | 240 KG |
Castor | 4x Φ10cm swivel castors with separate brakes |
Pillow | 390*220*100mm |
Cushion | Sponge+PU leather |
Motors | 4 Dewall motors |
Frame | Q235 Steel |
Power Supply | Ac110~240V 50/60Hz |
Plug | as required (hospital grade) |
Standard Accessories | Table , I.V.pole |
Color Optional | Green, Blue, Brown, Ivory |
Working environment | Temperature: -20ºC ~ 60ºC, Relative humidity: 10% ~ 85% |
