MERMAID (MEDICAL)INDUSTRY LIMITED

1

Equipment Application Descriptions : Mainly used for examination of organs such as abdomen, Superficial tissue reproductive system, urinary system,  etc.

2

Features

2.1

Real and delicate display of organic structure depends on full digital imaging technology with high precision; Multiple display modes , realizes multi - Angle, multi - directional comparative observation; Super - capacity movie playback and permanent image and video storage

2.2

Stable and efficient Windows operation platform, Strong expansible functions ,  convenient for system upgrading and quick maintenance

2.3

Adopt industrial platform , Hard disk≥128G, Fast data storage without loss

2.4

Open DICOM interface to connect the hospital system and realize real-time data sending and receiving

2.5

Equipped with Ultra ISO, System recovering USB flash disk, Take full backup at urgent moment

2.6

Operation control panel、Display keys all can achieve functional operation which will reduce adjustment time

2.7

One-key calls full-screen function

2.8

One-key calls for case information and entry

3

Performance Introduction

3.1

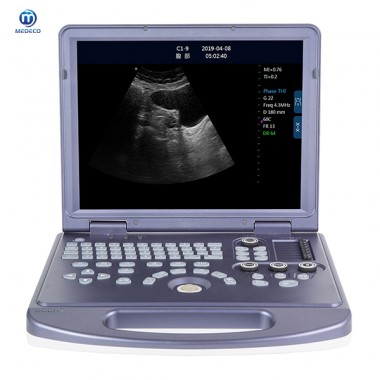

Monitor: 15 inch LED medical display, able to reverse it above 160 degree。

3.2

Scanning method : Convex/Linear/Micro-convex

3.3

Probe Sockets : 1(Standard Configuration) ; With automatic identification function to support a variety of probe work.

3.4

Operation languages: Chinese/English/Russian

3.5

Modes: B, B+B, 4B, B+M, M, PW

3.6

Built-in lithium battery with 18650 international standard cell, work last for 4h

3.7

Battery indicator and charging indicator

3.8

Cineloop: ≥1500 frames

3.9

Zoom : 4, 30 levels (adjustable)

3.10

Body Marks : up to 105 kinds

3.11

Frequency scope:

3.5MHz convex : 3.5MHz、4.0MHz、4.3MHz、5.0MHz;

6.5MHz transvaginal: 5.0MHz、6.0MHz、7.0MHz、8.0MHz;

7.5MHz linear: 7.5MHz、8.6MHz、10MHz、12MHz;

6.0MHz micro-convex : 5.5MHz、6.0MHz、6.7MHz、7.5MHz;

Harmonic frequency scope:

3.5MHz: H3.5MHz、H4.0MHz、H4.3MHz、H4.4MHz、H4.6MHz;

6.5MHz: 5.0MHz、6.0MHz、7.0MHz、8.0MHz;

7.5MHz: H8.0MHz、H8.6MHz、H9.2MHz、H10MHz;

6.0MHz: H5.5MHz、H5.7MHz、H6.0M、H6.5MHz;

3.12

Adjustable scanning range: 7.5: 79-100%;   3.5: 46-60%;   6.0: 68-90%

3.13

Measurement:  distance,  Angle,  area stenosis ratio,  ventricular output,  heart rate,  and other professional software measurement package

3.14

Measurement units can be switched between cm and mm

3.15

In addition to the commonly used software such as double apical diameter,  head and hip diameter,  head circumference,  and abdominal circumference,  the obstetric measurement data package includes yolk sac,  cervical transparent layer,  orbital distance,  lateral ventricle,  fibula length,  and foot length

3.16

Obstetric measurement datas memory automatically and  report generation function

3.17

Endow the functions of gestational age comparison table,  fetal development curve and fetal physiological score.

3.18

More than 12 examination modes available

3.19

One-key calls full-screen function

3.20

Puncture guidance , Deeply following cursor display in real time

3.21

Probes will auto-freeze within the setting time

3.22

One-key calls for case information and entry

3.23

Two storage methods , Hard disk storage,  supports USB flash disk storage(store and read)

3.24

Single image storing time≤1 second

3.25

Display image storage preview window in real time,  delete and share at any time

3.26

Grap Scale: 256 Levels
